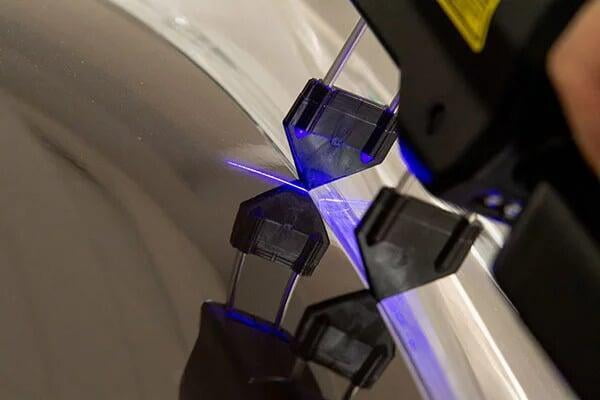

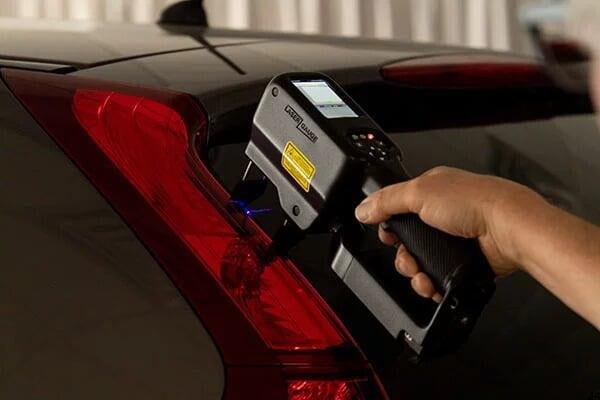

The LaserGauge HS702, featuring Blue Laser Technology, stands out as the most compact and robust among the LaserGauge® DSP sensors. It excels in high-volume applications that demand portability, such as gap/flush measurements on automobiles, aircraft, and weld inspections.

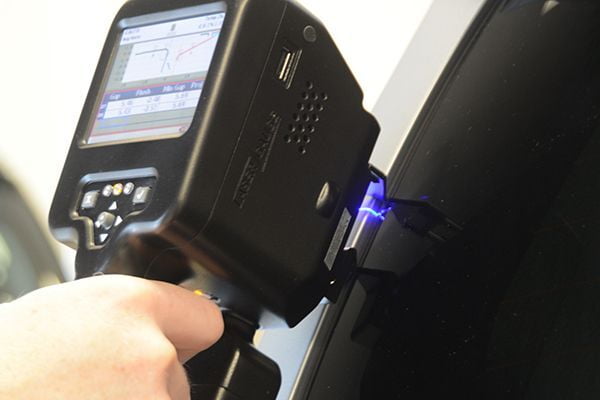

The LaserGauge HS703 shares the same capabilities as the HS702. It distinguishes itself with a larger 3.5" display. This expanded screen size enhances operator feedback and instruction, ensuring easier viewing and interpretation of measurement results.
Introducing the HS702 and HS703 models.
HS702: Compact, rugged, and perfect for portable applications like Gap/Flush measurements.
HS703: Same capabilities with a larger 3.5" display for clearer feedback. Achieve precision measurements in diverse industries.
HS702 SINGLE STRIPE LASER SENSOR
HS702 SINGLE STRIPE LASER SENSOR
Field of View Option
- 1.2" (30mm)
- 1.9" (48mm)
- 2.5" (63mm)
HS703 SINGLE STRIPE LASER SENSOR
HS703 SINGLE STRIPE LASER SENSOR
Field of View Option
- 1.2" (30mm)
- 1.9" (48mm)
- 2.5" (63mm)
Features common to both:
- 1270 scan points over sensor field-of-view.
- 1 GHz DSP processor – measurements are completed in as little as ½ second.
- Totally self-contained – no need for external PC or cables for operation.
- Automatic gain optimization – scanning on wide variety of colors/finishes.
Advantages:
Advantages:
- Compact and Portable.
- No cables to external PC or other hardware required for use.
- Very fast.
- Scanning of headlamps, tail lamps, windows and chrome.
- Proven LaserGauge® technology.

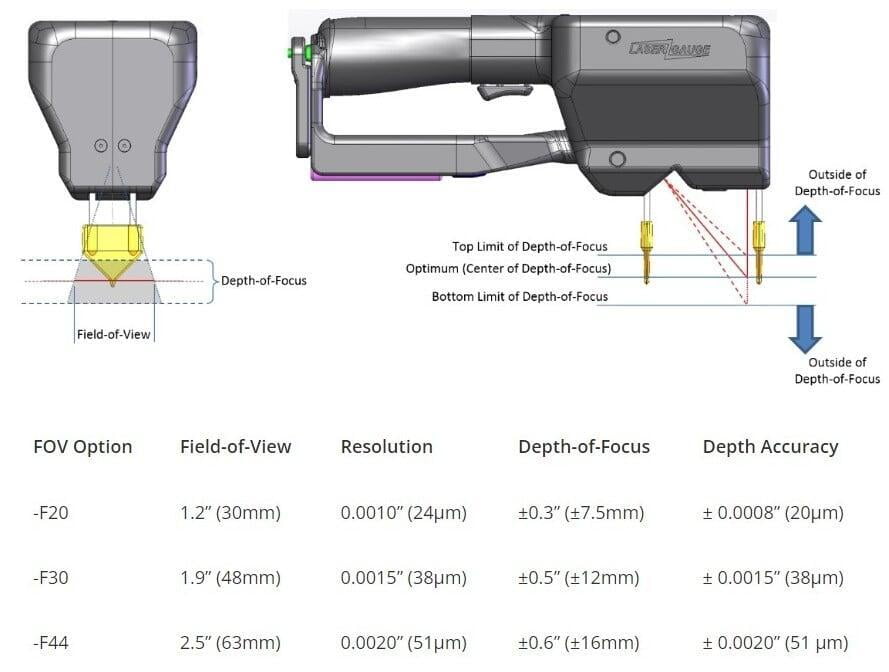

Field Of View Options
Both the HS702 and HS703 come in 3 different fields-of-view (or scan width).
